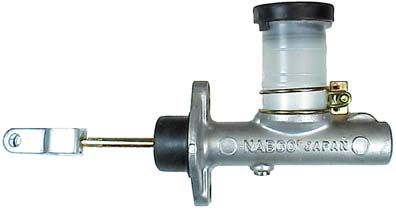

Datsun Roadster Clutch Master Cylinder from Rallye Enterprises, Ltd.

..............

..............

INFO ON CLUTCH MASTER 306-20 and 306-20A
On the newer clutch masters; both the Nissan and aftermarket cylinders; the fluid line is metric threaded.

Over the years we have seen that many times people (even "mechanics") just seem to put the SAE thread line on the roadster into it and gunge the threads up. Sometimes it works for awhile but of course both pieces are damaged.

The cylinders we sell will have a removable little thread adapter so no THREAD GUNGING is necessary. This only presents one problem. As it is the hard line comes up near the fender well and does a sharp bend to the master cylinder. With the adaptor there; little as it is; you need to pull the line back and if need be reform it a bit (I just use my wrist to do it) so the line goes into the adaptor exactly parallel; otherwise you can ruin the threads on the adapter or the line.

I usually leave the adapter loose in the cylinder while I am doing this until I have the hard line threaded into the adapter straight and the tighten both.

These come with an adjustable push rod so you can put your pedal where you want it; or you can also use your old pushrod.

Back Button

Back Button

To Rallye Homepage

Back to NEW CLUTCH

Back to USED CLUTCH

DATSUN SPL310 SPL311 SRL311 CLUTCH MASTER CYLINDER
