HEAD #DU11-44 CORNER
MEASUREMENTS: LF:
3.193 RF:
3.188 LR:
3.222 RR:
3.205 DATSUN
1500 - 1600 USED CYLINDER HEAD Info ..............
Datsun Roadster 1600
Cylinder Head from Rallye Enterprises, Ltd.
Used

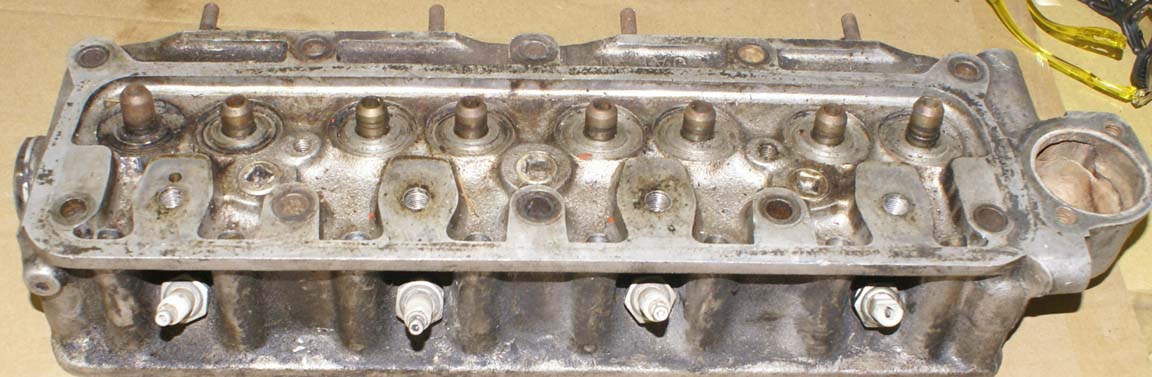

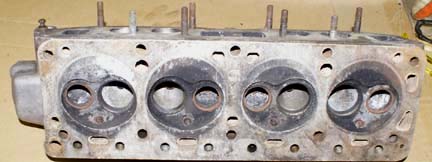

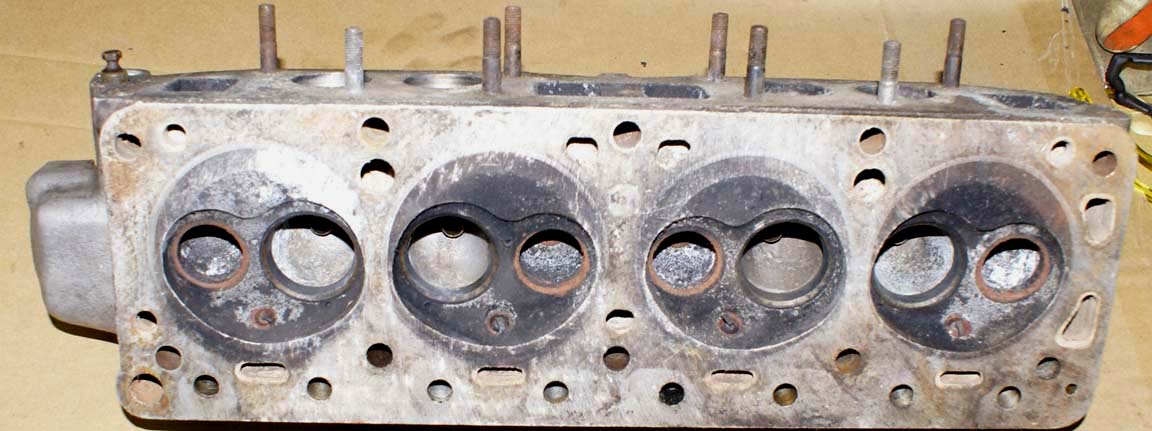

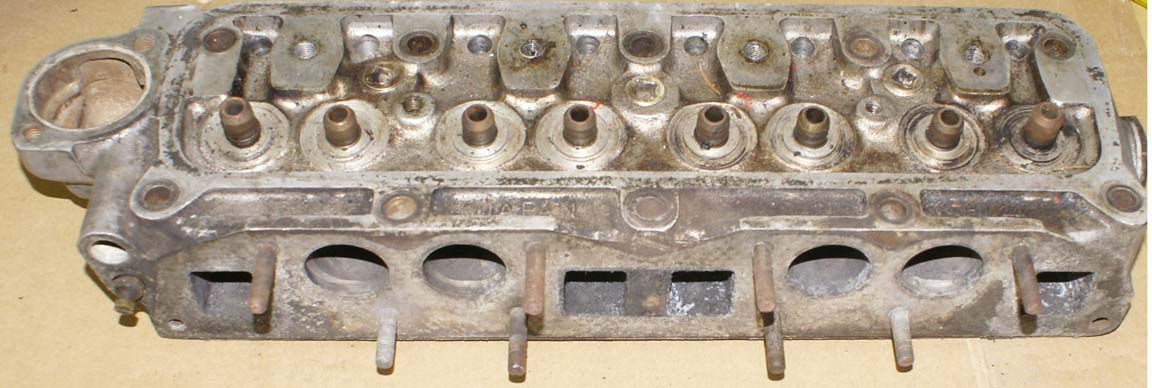

SAE aluminum head as shown. Requires 2-hole thermo
housing. Appears to need to be surfaced about .012" to
true head. Original thickness is 3.248 - 3.250. Two
manifold stud holes are bad one for sure needs a
helicoil insert the other probably.
Datsun SPL311 Cylinder
Head
