HOW TO ORDER - - - .DELIVERY CHARGES and TIME- - - .RETURNS

Don't Rely on the Year on Your Title and Registration. Please see "Year Your Car Really Is"

Please see Used Parts Information Before Ordering


FIT CODES: A=63-64 1500  B=65 1500  C=65-67 1600  D=67 1/2 1600  E=68 1600  F=69 1600  G=70 1600  H=67 1/2 2000  I=68 2000  J=69 2000  K=70 2000  *=ck description  15=all 1500   16=all 1600  20=all 2000

.....

If pictures are not provided for your item here you can go to the "New Parts" sections to click on available picture/info links for help in identifying what a part is. If none found; email and ask one be posted.

If the part number starts with "DU" the picture and information is FOR THAT SPECIFIC EXAMPLE OF THE PART; that is the part you will be sent.

If the part number does not start with "DU" the picture is just a general example of the part.

Pictures in the Used Parts Sections are usually limited to those items where that particular sample has it's own DU number due to condition differences that can not be easily described; or when I know the part isn't available new

.....


IDENTIFYING TRANSMISSIONS INFO


DU32-64

GEAR KIT, 5th,
includes an unmodified mainshaft 5th gear; includes snap ring, thrust block, anchor block, brake bands and synchro ring.

$351

DU32-40

HOUSING PCS, empty
includes the bellhousing and center housing. Painted
RED so you can go faster...

$160

DU32-70

HOUSING, TAIL

$35

DU32-68

SHAFT, INPUT, WARNER, some teeth need light dressing with "dremel" tool

$69

SHIFT FORK INFO:
Some show virtually no wear; we are notating them as "<001" (under 1 thousandths of an inch) . Actually the original thickness of the forks varies more than that. Feel of wear on the fork is amplified by the length of the shift lever under your shift knob. I found one that had .040" and another that was worn .100"!

DU32-42

SHIFT FORK, 1-2 or 3-4, Wear approximately .001"

$269

DU32-43

SHIFT FORK, 1-2 or 3-4, Wear approximately .001"-.002"

$269

DU32-16

SHIFT FORK, 1-2 or 3-4, Wear approximately .021"

$179

DU32-17

SHIFT FORK, 5 - R, Wear approximately .011"

$72

DU32-18

SHIFT FORK, 5 - R, Wear approximately .001" or less

$126

DU32-19

SHIFT FORK, 5 - R, Wear approximately .006"

$99

DU32-44

SHIFT FORK, 5 - R, Wear approx .006", 010" on other tip

$81

DU32-69

SHIFT LEVER (angled back, not original)

$39


SERVO SYNCHRO COUPLING 1st - 4th INFO here

"Wear" refers to increase in internal diameter on each engaging outer one third of coupling. Also critical; probably more so; is how beaten up the little dog teeth are. Many a little worn piece has to be cast aside because the dog teeth are going to present a problem.

Deduct 20% on couplings if you are also buying new synchro rings and bearings from us.

DU32-26

SYNCHRO COUPLING, SERVO, Wear approximately .000"

$179

DU32-27

SYNCHRO COUPLING, SERVO, Wear approximately .001"

$179

DU32-28

SYNCHRO COUPLING, SERVO, Wear approx .000" side 1, .010" side 2

$108

DU32-29

SYNCHRO COUPLING, SERVO, Wear approx .002" side 1; .006" side 2

$133

DU32-30

SYNCHRO COUPLING, SERVO, Wear approximately .002"

$179

DU32-31

SYNCHRO COUPLING, SERVO, Wear approximately .004"

$145

DU32-32

SYNCHRO COUPLING, SERVO, Wear approx .000" side 1, .001 side 2

$179


SERVO SYNCHRO RING INFO here

"Wear" refers to decrease in external diameter with ring in a relaxed state.
This is due to both wear on ring and loss of spring tension.

DU32-20

SYNCHRO RING, SERVO, 1st-4th, Wear approximately .010"

$42

DU32-21

SYNCHRO RING, SERVO, 1st-4th, Wear approximately .008"

$45

DU32-22

SYNCHRO RING, SERVO, 1st-4th, Wear approximately .005"

$51

DU32-23

SYNCHRO RING, SERVO, 1st-4th, Wear approximately .019"

$26

DU32-24

SYNCHRO RING, SERVO, 1st-4th, Wear approximately .020"

$24

DU32-25

SYNCHRO RING, SERVO, 1st-4th, Wear approximately .022"

$20

DU32-38

SYNCHRO RING, SERVO, 1st-4th, Wear approximately .017"

$29


Parts below are just general used parts that don't have a specific measurement or unique characteristic that needs them to have their own special part number. They are useable as is. They all vary in condition as all used parts do. The "DU-" parts above; that is for THAT SPECIFIC PART.

........

Don't know which type of trans you have? (Warner or Servo?) INFO

FITS

PART#

DESCRIPTION

COST

20

328-94U

BRACKET, END, Rear of 3-4 shift rail

$22

20

328-95U

BRACKET, END, Rear of 5-R shift rail

$45

20

328-A8U

BRACKET, CONTROL ARM rear of trans, has "ears" that push down the plunger pins when you move shifter left and right

$113

20

328-B2U

BRACKET, SHIFT, cast iron, visible inside car, shift knob lever goes down into this piece

$90

20

322-67UA

BUSHING (collar), Mainshaft Center as good as we ever see them

$55

20

322-67UB

BUSHING (collar), Mainshaft Center std condition, may need a slight polish

$30

20

323-09UA

BUSHING, MAINSHAFT 5TH as good as we ever see them

$95

20

323-09UB

BUSHING, MAINSHAFT 5TH, std condition, may need a slight polish

$65

20

113-07U

CROSSMEMBER, FRAME

$80

20

370-03U

DRIVESHAFT ASSY (Both Shafts. U-Jts not guaranteed)

20

321-48U

FLANGE, rearmost piece on mainshaft, round

$30

Servo

322-E4U

GEAR, 1st, Mainshaft Servo

$359

Warner

322-A1U

GEAR, 1st, Mainshaft Warner

$323

Servo

322-A1U

GEAR, 2nd, Mainshaft Servo

$365

Warner

322-A2U

GEAR, 2nd, Mainshaft, Warner

$152

Servo

322-E6U

GEAR, 3rd, Mainshaft, Servo

$189

Warner

322-A3U

GEAR, 3rd, Mainshaft, Warner

$143

20

322-B6U

GEAR, 3rd, Countershaft, all

$72

20

322-B8U

GEAR, 4th, Countershaft, all

$66

20

323-01U

GEAR, 5th, Countershaft

$45

20

323-03UE

GEAR, 5th Mainshaft, Early style, not modified

$243

20

323-03UM

GEAR, 5th Mainshaft, Early style, modified

20

323-03UL

GEAR, 5th Mainshaft, Late style, splined

20

322-D1U

GEAR, REVERSE, Countershaft

$62

20

322-A7U

GEAR, REVERSE IDLER (engages slider) email for pics
......(more banged up than "normal" $140 and $80)

$220

20

327-25U

GEAR, SPEEDO WORM (on mainshaft)

$39

20

321-42U

HOUSING ADAPTOR PLATE cast iron center plate that center section and tail housing bolt to

$35

20

304-02U

HOUSING, BELL, EMPTY

$80

20

321-37U

HOUSING, CENTER, EMPTY

$179

20

321-45U

HOUSING, TAILSHAFT, EMPTY

$110

20

322-E8U

HUB 5th/Reverse Gear, Mainshaft

$116

20

322-A8U

NEEDLE BEARING, INPUT SHAFT

$26

20

322-66U

NEEDLE BEARING, MAINSHAFT CENTER

$20

20

323-10U

NEEDLE BEARING, MAINSHAFT REAR 5th GEAR

$19

20

322-A8U

NEEDLE BEARING, REV IDLER

$26

20

327-17U

PINION, SPEEDO 3.7 diff 18T, Blue

$14

20

327-22U

PINION HOLDER 3.7 and 3.9 diff

$55

20

321-43U

RETAINER, BEARING, center, steel plate 1/4" thick

$27

20

322-B5U

SHAFT, COUNTER (1st & 2nd Gears)

$135

20

322-E9U

SHAFT, MAIN single nut type

$90

20

322-F8U

SHAFT, MAIN double nut type

$299

20

322-A9U

SHAFT, REV IDLER

$80

20

322-B3U

SHIFT LEVER external for knob *METRIC

$

Servo

328-87U

SHIFT RAIL, 1-2

$99

Warner

328-88U

SHIFT RAIL, 1-2

$139

Servo

328-89U

SHIFT RAIL, 3-4 order end bracket separately

$117

Warner

328-90U

SHIFT RAIL, 3-4 order end bracket separately

$139

20

328-91U

SHIFT RAIL, 5-R order end bracket separately

$18

20

328-A6U

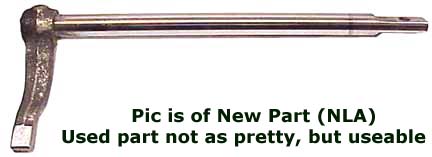

SHIFT ROD, main shift lever (horizontal)

$99

20

321-42U

SUPPORT PLATE, center, 1" thick

$30

Servo

326-16U

SYNCHRO HUB (triangle piece) 1st-4th

$153

Warner

326-24U

SYNCHRO HUB 1-2

$63

Warner

326-25U

SYNCHRO HUB 3-4

$63

Servo

326-08U

SYNCHRO RING, 1-4, see top of page

Servo

323-04U

SYNCHRO RING, 5TH

$190

Servo

326-17U

SYNCHRO SLIDER COUPLING 1st-4th see list

Warner

326-23UA

SYNCHRO SLIDER COUPLING 1-2 or 3-4
......best condition found in gearboxes, rare

$171

Warner

326-23UB

SYNCHRO SLIDER COUPLING 1-2 or 3-4
......typical used part found in gearboxes, common

$89

20

322-E7U

SYNCHRO SLIDER COUPLING 5th

$68

20

320-06SU

TRANSMISSION, 5 SPEED

20

113-02U

TRANSMISSION MOUNT, rubber, not broken or gooey

$45

Please EMAIL for items not listed.
